Build an AI Agent That Designs CAD Models Automatically

Until now in the series, we manually prompted the AI to generate CAD objects inside FreeCAD.

But real engineering systems need more than prompts.

They need:

planning
validation
retries
execution tracking
state management

In this fourth part of the AI + FreeCAD automation series, we move from simple prompting to building a real AI CAD agent.

The system now keeps track of:

the user request
execution plans
STL outputs
validation results
execution attempts
failure reasons
workflow state

This changes everything.

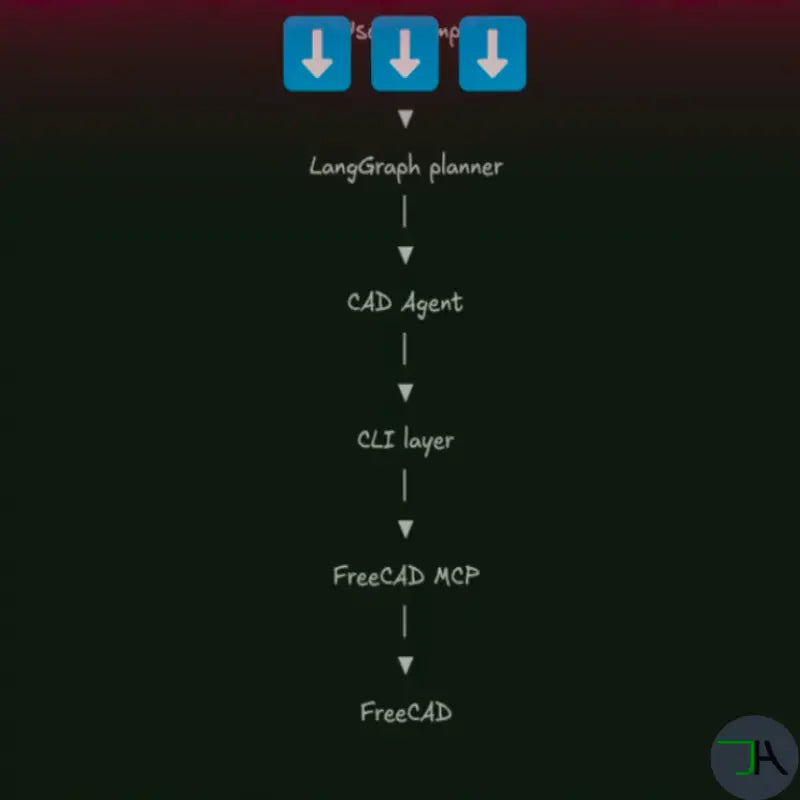

Instead of asking the AI to generate a single object manually, we start building an autonomous workflow capable of reasoning about CAD generation step by step.

This is where AI engineering becomes much closer to real production systems.

The agent can:

plan actions
execute FreeCAD operations
inspect failures
retry workflows
track execution state
validate outputs

And this is only the beginning.

In the final part of the series, we move toward a production-level AI CAD automation system capable of designing, validating, exporting, and managing mechanical parts automatically.

The full architecture, repositories, workflows, and advanced systems are available inside the Chikara Studio community.
