Design Real 3D Objects in FreeCAD Using AI
We are moving beyond simple demos.
In this third part of the AI + FreeCAD automation series, the AI starts generating real parametric CAD objects automatically inside FreeCAD.
After connecting AI to FreeCAD in the previous video, we now use the system to create:

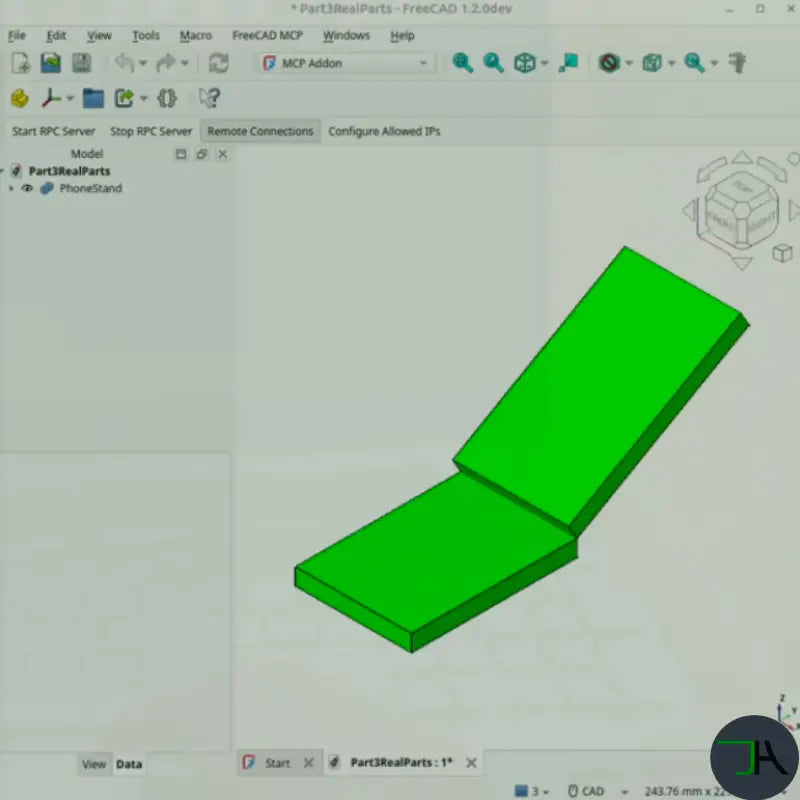

- phone stands
- mounting brackets
- parametric cubes
- STL exports
- programmable CAD workflows
The workflow is simple but powerful:
Prompt → AI → FreeCAD MCP → Python Instructions → 3D Geometry
The AI interprets the request, generates FreeCAD Python instructions, and FreeCAD creates the geometry automatically.
This is where things start becoming interesting for:
- engineering automation
- AI-assisted CAD
- parametric design systems
- autonomous design pipelines
One important concept introduced in this video is parametric modeling.
Instead of manually redrawing geometry, the AI modifies dimensions and constraints directly.
Change a value in the prompt and the CAD object updates automatically.
We also start seeing something very important for future AI systems:
structured reports.
The AI not only creates the object, but also generates reports about:
- generated objects
- STL exports
- runtime errors
- tool usage
- validation steps
This becomes extremely useful once multiple AI agents start collaborating together later in the series.
And yes — we also encounter runtime errors.
Which is actually important.
Because real AI engineering systems are not magic. They need:
- debugging
- validation
- retries
- verification workflows
That is exactly where the series is going next.
In the next part, we move from manually prompting the AI to building an autonomous AI CAD agent capable of planning designs automatically.
